| 브랜드 이름: | SINO |
| 모델 번호: | SDS200s, KA-600, KA-300 |
| MOQ: | 1세트 |
| 가격: | negotiable |
| 포장 세부사항: | 판지 상자 |
| 지불 조건: | 전신환, 신용장 |

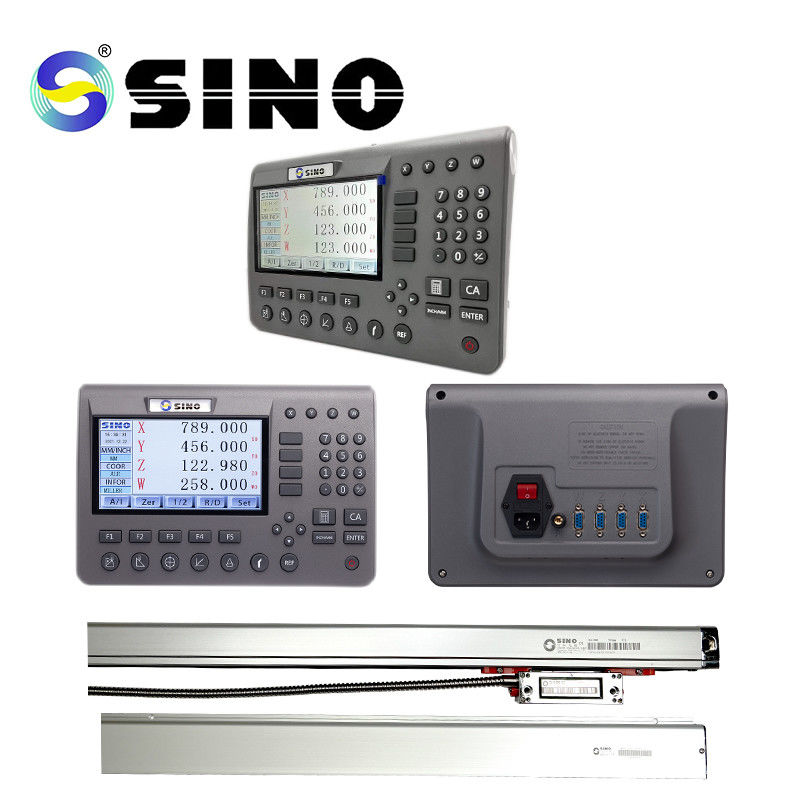

SINO SDS200S LCD Touch Screen Digital Readout Precision Kit For Lathe Grinder Millilling
A multifunctional three axis digital readout is the DRO SDS200S. By altering the system parameters, it can adapt to the various machining requirements. It contains numerous graphical machining features, including the ability to calculate arcs, drill holes with uniform spacing around the circumference, drill holes perpendicular to a line, process angular surfaces, calculate angles, measure taper, and use digital filters. These features make the graphics function easier to use.
Package list:
| Item name | 3 axis mini size metal LCD milling machine Readout kit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Advantages
-Support for five languages: Chinese, German, French, English, and Spanish
-Touch Screen, easy to use
Simple, user-friendly system
-Large LCD screen that clearly shows
Specifications of the SINO SDS200S linear scale encoder and digital readout systems
A high-performance universal display console with capabilities for milling, turning, and grinding is available with the SDS200.
This four-axis variant supports a maximum of four connected linear encoders. Additional connectors can be used to combine axes or change the input to fit the needs of equipment made by different manufacturers. Please refer to the guide below for encoder compatibility.
sturdy die cast housing and a front panel membrane with tactile switches.
a sizable, simple-to-read LCD display.
Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
