제품 상세 정보:
|
| Name: | Sino SDS3MS Digital Readout Syastem | Number of Axis: | 3 Axis DRO Encoder |
|---|---|---|---|
| Usage: | Various types of 3 axis proposals | Suitable for: | lathes grinding machine milling machine system |
| Name 2: | Counter for Digital Readout systems 2 Axis | Voltage: | AC 100~240V |
| Signal: | Input: TTL / RS422 | Color: | Grey |
| Warranty: | 1 Year | Number Of Axes: | 2-Axis |
| Model: | Digital Readout System | Input Signal: | Linear Scale |
| Power Source: | ELectricity | Display Resolution: | 0.1μm, 0.5μm, 1μm, 5μm |
| Plug: | US, UK, EU, AU, etc. | Sealing Protection: | IP53 IP67 |
| Display: | LED | ||
| 강조하다: | TTL lathe milling machine with digital readout,Sino DRO SDS3MS readout system,AC110V-220V input milling machine |
||
Sino DRO SDS3MS Digital Readout TTL Lathe Milling Machine With AC110V–220V Input
Three coordinates are shown on the multifunctional gauge DRO SDS2MS's numerical display.
Modifications to this gauge's properties enable it to be set up to work correctly with a different machine tool.
Digital readout settings for the SINO SDS3MS
1. The voltage range between AC and DC is 50 Hz to 60 Hz/85 v to 250 v.
2. 15 watts of electricity were consumed at 25 volts.
3. Assign the corresponding coordinates to the numbers one, two, and three.
4. Use eight meters of text to construct data information and describe and exhibit symbols that indicate seven displays (two or three axes).
5. The weight was two kilograms.
6. It features an intuitive UI and a controller that can be adjusted. The input signal is TTL, while the output signal open collector is an EIA-422.
7. Give permission to connect a signal with an input frequency higher than 100 KHz resolution: One micrometer, five microns, two microns, ten microns, and five microns
Digital display table advantages:
1. Boasting professional design, it features an elegant and sleek appearance, coupled with rapid and robust frequency response.
2. Its shell is made of die-cast alloy, with the surface undergoing electric coating treatment, which endows it with dustproof and wear-resistant 0properties as well as excellent shielding performance.
3.0Thanks to professional design and an independent power supply, it offers a wide adaptation range, high stability, and strong anti-interference capability.
4.It excels in power supply and signal anti-interference; the panel buttons are of high quality and durable, and replacement is simple and convenient.
5. Designed for easy operation, it directly displays functional operations such as sine, cosine, and tangent functions on the digital display.
6. It supports automatic tool compensation, which can be applied in either the X or Y direction.
Equipped with an RS-232-C interface, it can be connected to a PC, and PLCs are employed in various automatic displacement measurement mechanisms.
| 1 PC | 3 Axis digital readout SDS3MS |
| 1 PC | Transparent cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

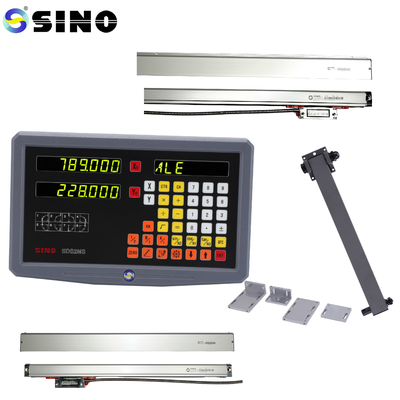

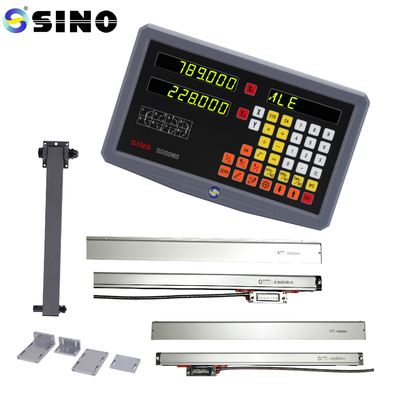

Product image /photos:
The rack in the picture is optioned, not standard product.
