제품 상세 정보:
|
| Item name: | SDS 2MS Test Instrument System | Usage: | For Milling Lathe TTL |
|---|---|---|---|
| Power voltage selection: | AC 50 Hz~60 Hz | Signal: | TTL square wave |
| Resolution: | 5µm/1µm/0.2µm/0.1µm/0.5µm | Storage temperature: | 0℃~70℃ |
| Power consumption: | 25VA | Sealing Class: | IP53/IP52 |
| Material: | Aluminum + glass | Interface: | RS232 |
| Scale Model: | KA-300 encoder | Additional: | in inch display |
| Axis: | 2 Axis | ||
| 강조하다: | 2 axis digital readout for milling,TTL digital readout with linear scale,SINO SDS 2MS DRO lathe kit |
||

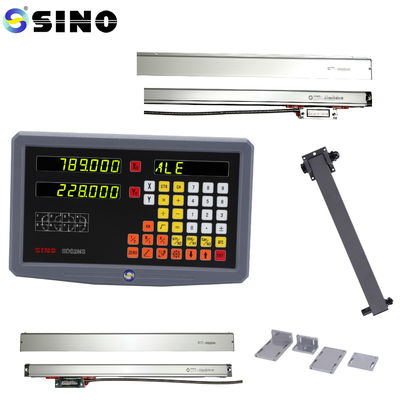

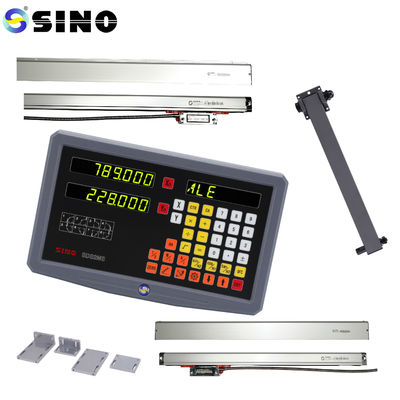

SINO 2 Axis Digital Readout Test Instrument System SDS 2MS DRO Kits Glass Linear Scale For Milling Lathe TTL
Our firm has authorized and audited the OHSAS 18001 occupational health and safety system, ISO 14001 environmental system, and ISO 9001 quality system.
Smooth R :
Mold processing relies heavily on arc processing. When the required forms are simple and need little arcing, single workpiece placement machining with a CNC machine can be very expensive and time-consuming.
specifications:
1. The digital display box needs to be handled carefully.
2. The box needs to be grounded properly.
3. Choosing the AC 100V–240V 50Hz–60Hz power voltage
4. The power consumption is 25VA.
0°C to 45°C is the operating temperature.
6. Storage temperature range: -30°C to 70°C
7. Relative humidity: less than 90%, 20±5°C
8. Weight: around 840 grams
9. The box must be free of corrosive gasses.
10. There are two coordinates in total.
11. Display: Using an 8-star character display device, the message window shows seven numerals with symbols.
12. Multiplication of frequency: 4X
13. TTL square wave is an acceptable input signal.
14. ≤5M Hz is the maximum permitted input signal frequency.
15. Resolution of length: 5µm, 1µm.
16. Operation keyboard: Diaphragm touch keys that are sealed
Package list:
1. A digital readout from the SDS2MS series
2. A length of electrical wire
3. An operational instruction copy
| Item name | SDS 2MS Digital Readout System |
| Digital Readout (DRO) | SDS2MS |
| Power Voltage selection | AC 50 Hz~60 Hz 100V~240V |
| Power consumption | 25VA |
| Working temperature | 0℃~45℃ |
| Allowable input signal | TTL square wave |
Detail Information:
Caution:
To prevent electric shock from fire, the machine shall not spray moisture or coolant directly.
All linear scales were tested before delivery. Here is a sample of a scale's test report.
Dear users:
We appreciate you buying and using our items! Please read the following guidelines to ensure that our services increase your satisfaction after the purchase:
Products will be supplied with "Three Guarantees" and a one-year warranty (from date of sale) that includes free repair and a 15-day limited replacement.
Replacement accessories must be complete: A handful of the services listed below are not free: 1. beyond a one-year guarantee; 2. unusual damage brought on by noncompliance with usage, maintenance, and storage guidelines; 3. damage from an unauthorized repairer; 4. without a legitimate invoice (unless the product can be verified during the warranty period); 5. damage from an irresistible force
