제품 상세 정보:
|
| Item name: | SDS6-3VF | Usage: | 3 axis machine positioning with RS232-C |
|---|---|---|---|
| System: | 3 axis digital readout system SDS6-3VF | Scale model: | KA-300 linear scale |
| Signal: | TTL / EIA-422-A | Resolution: | KA-300 linear scale: 5 or 1 micron |
| Voltage: | digital readout system: AC 100V-240V | Meas. travel: | KA-300 linear scale: 70-1020mm |
| 강조하다: | RS232 output lathe machine DRO,Durable digital readout kit with encoder,LED lathe machine DRO kit |
||

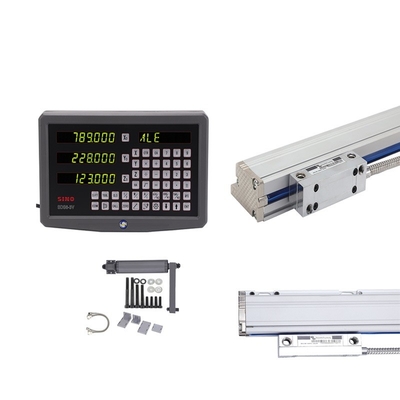

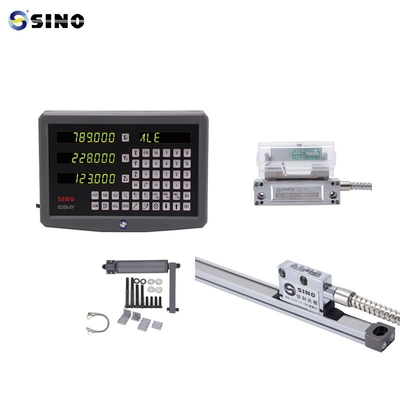

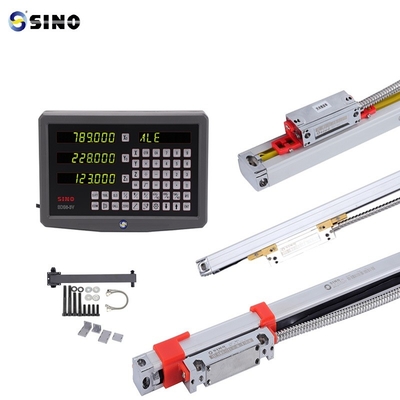

SINO SDS6-3VF Digital Readout System for 3-Axis Metal Milling Machine, RS232-C Output, with Three Linear Scales.
This digital readout system is specifically designed to meet the requirements of a 3-axis milling machine and allows for connection to a PC or other systems. It includes a 3-axis LED display digital readout SDS6-3VF, along with three standard KA-300 linear scales.
Package list:
| Item name | 3 axis lathe machne LED RS232-C output digital readout system |
| Digital Readout (DRO) | SDS6-3VF |
| Linear scale for axis X | 670-1020mm |
| Linear scale for axis Y | 370-570mm |
| Linear scale for axis Z | 370-570mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type C |
| Protection cover for Y scale | Type D |
| Protection cover for Z scale | Type D |
| Bracket for scales | T-bracket (2 sets) |
| Others | Cable / Screws / Manual |
Functions for milling machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
