AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional

인증
중국 Guangzhou Sino International  Trade Co.,Ltd 인증
중국 Guangzhou Sino International  Trade Co.,Ltd 인증
고객 검토
우리는 8년전 중국 제품을 구입했습니다. 우리는 2022년까지 드로스의 가장 최근의 배치를 다시 사들이지 않습니다. 매우 중국의 제품을 사용하는 것 우리의 작업을 용이하게 합니다. 나는 진정으로 중국이 계속 발달할 수 있기를 희망하고 우리를 위한 더 정확한 제품을 만듭니다.

—— 찰스

제가 지금 온라인 채팅 해요

AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional

AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional
AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional

큰 이미지 :  AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional

제품 상세 정보:
Place of Origin: Guangzhou, CHINA
브랜드 이름: SINO
인증: CE, RoHS
Model Number: SDS2MS
결제 및 배송 조건:
Minimum Order Quantity: 1 PC
가격: negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional

설명
Name: Digital Readout SDS2MS Number of Axis: Two axes
Case: Plastic / light Display: Green LED
Signal: Input: TTL / RS422 Voltage: AC 100~240V
Usage: All kinds of 2 axis propose
강조하다:

SINO SDS2MS digital readout system

,

multifunctional digital readout system

,

AC 100-240V digital readout system

SINO Economy 2 Axis LED Digital Readout System DRO SDS2MS



LED DRO SDS2MS is one of the SDS2 series digital readout.



That is an economy version of SDS6 series digital readout.

It also employs the newest 16 bits SCM technology and is allowed to input the high frequency of A/B signals up to 5MHz.

That's good enough for most of 2 axis display requirement, like the high precision coordinate boring machine, floor boring machine, grinding machine, lathe, milling machine and so on.



The plastic case is try to make the weight ligher to save more transportation cost.



Upgraded Functions:



  1. The calculator function:

SDS2 series can change the decimal digits to be three, four or five digits to improve the calculating precision.

  1. Non-linear error compensation:

The system has maximum 40 sections non-linear error compensation to improve the positioning precision.

  1. The numbers of decimal digits can be chosen in inch mode:

4 / 5 decimal digits can be chosen in inch mode. 4 digits can satisfy long scale requirement, and 5 digits can satisfy high precisions display.





Specifications :



Supply Voltage range: AC 80V~260V; 50~60Hz, US Plug available

Power consumption: 15VA

Operating temperature: 0~45 degrees centigrade

Storage temperature: -30~70 degrees centigrade

Readout allowable input signal: TTL/RS422 square wave

Allowable input signal frequency: Less than 5MHz

Max resolution of digital display length: 0.5µm

Min resolution of digital display angle : 0.0001/pulse





Packaging List :

1 PC 2 Axis digital readout SDS2MS
1 PC  Transparent cover
1 PC Instruction Manual (English)
1 PC Cable

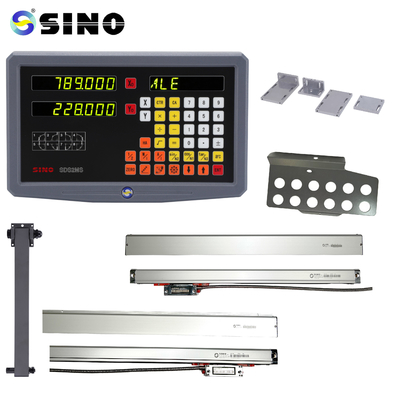

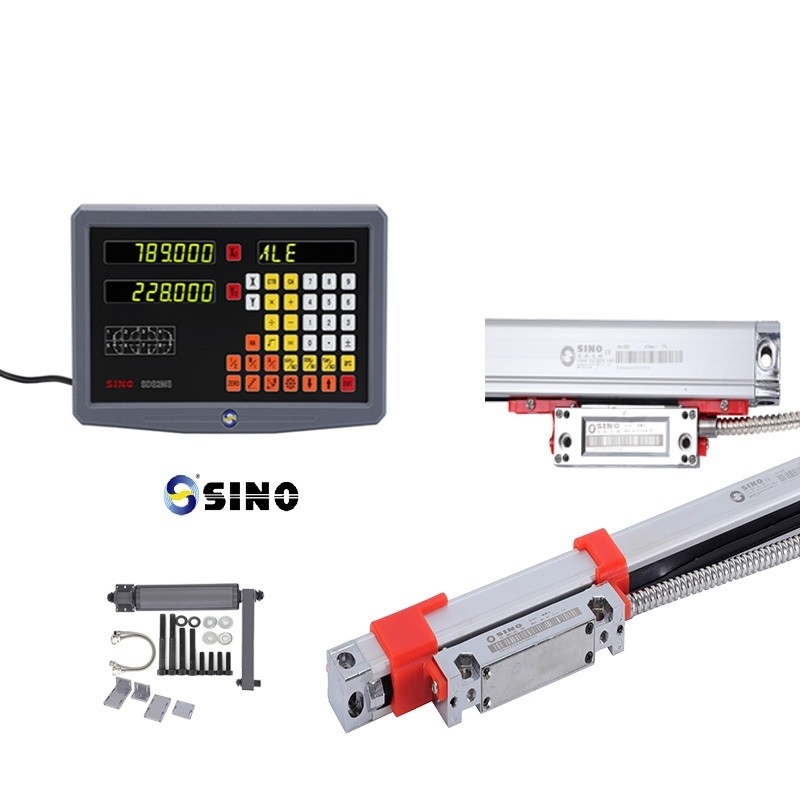

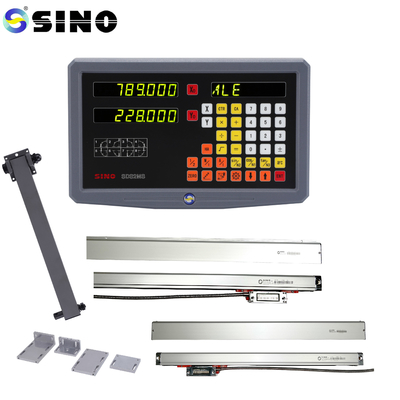

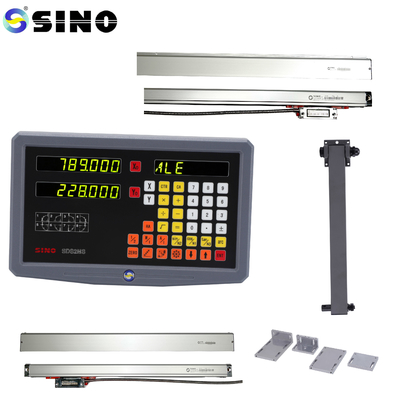

Product image /photos:

AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional 0



AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional 1

AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional 2

The rack in the picture is optioned, not standard product.



AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional 3
